RAISE. LOWER. RELAX.

Stromberg Carlson offers electric landing gear systems in both 29.5″ and 33.5″ leg lengths, with 5500 lb or 6500 lb motors.  Please see offerings below.  Built in USA.

• Manual Landing Gear has a dynamic load max of 8,000 lb, 4,000 lb per leg
• Electric Landing Gear has a dynamic load max of 5,000 lb, 2,500 lb per leg

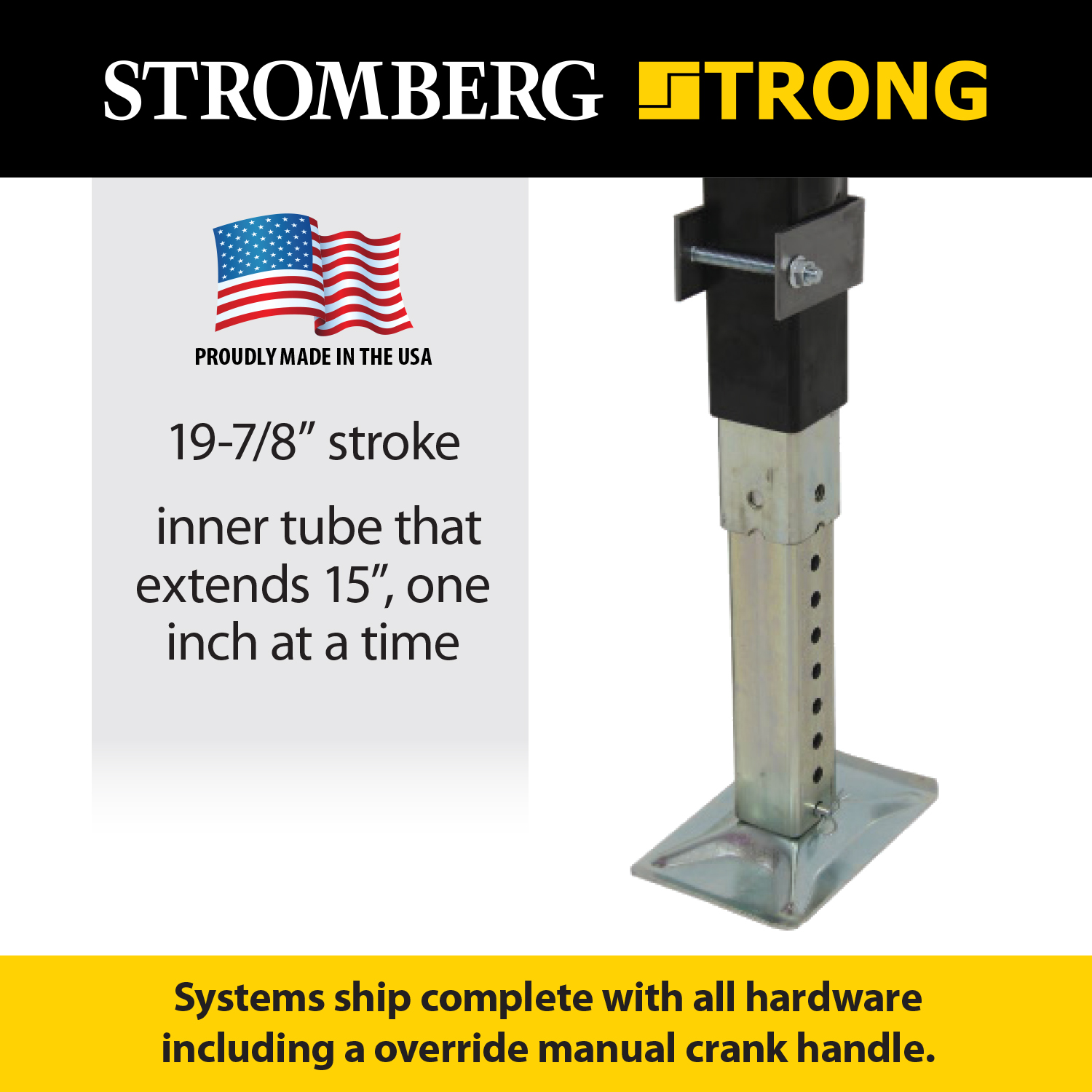

• 19 7/8” stroke, and an inner tube that extends 15”, one inch at a time

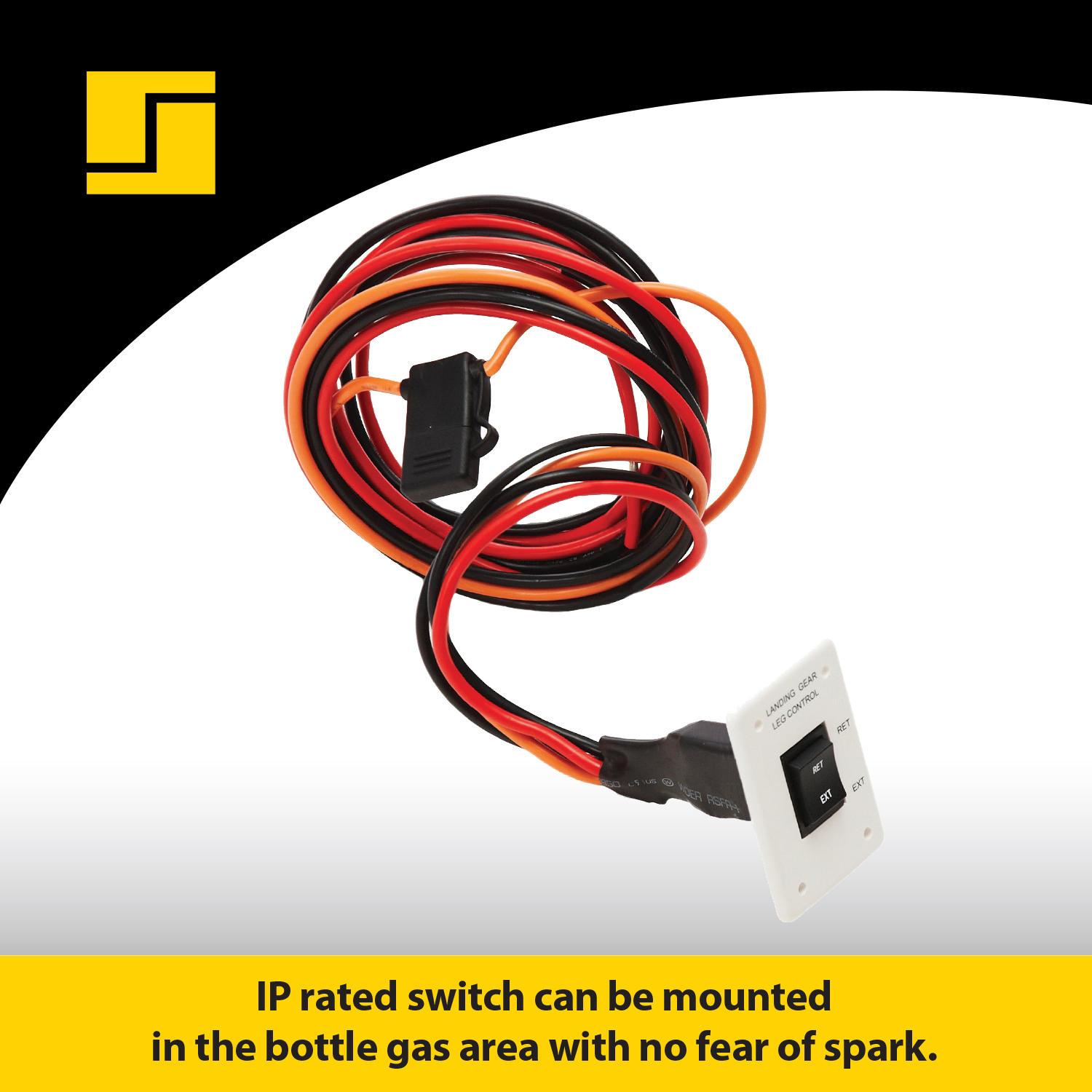

• IP rated switch can be mounted in the bottle gas area with no fear of spark

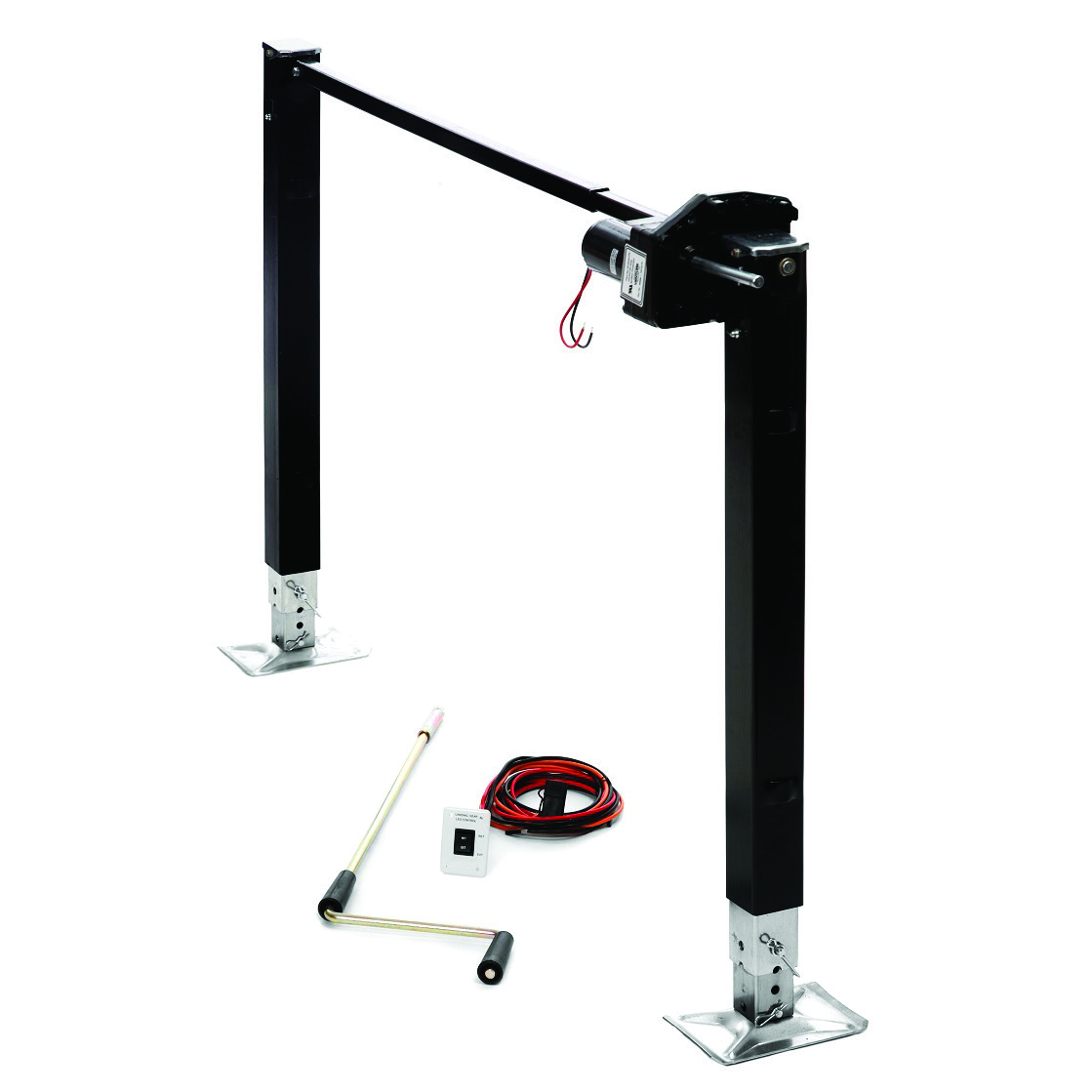

LG-1 – Electric Landing Gear – 29.5″ legs, 5,500 lb motor
LG-179013/LG-179014 legs, gears, LG-142178 motor & LG-145236 IP switch

LG-2 – Electric Landing Gear – 33.5″ legs, 5,500 lb motor
LG-177201/LG-177202 legs, gears, LG-142178 motor & LG-145236 IP switch

LG-3 – Electric Landing Gear – 29.5″ legs, 6,500 lb motor
LG-179013/LG-179014 legs, gears, LG-196308 motor & LG-145236 IP switch

LG-4 – Electric Landing Gear – 33.5″ legs, 6,500 lb motor
LG-177201/LG-177202 legs, gears, LG-196308 motor & LG-145236 IP switch

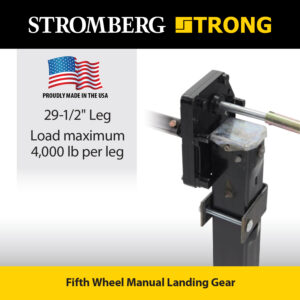

LG-183708 – Manual Landing Gear – 29.5″ legs
LG-179013/LG-179014 legs, gears, foot pads, cross shaft and hardware
