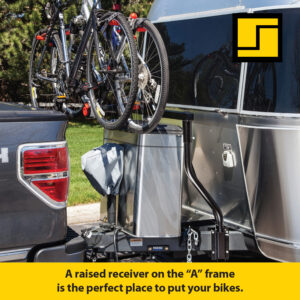

A raised receiver on the “A” frame is the perfect place to put your bikes. Our Bike Bunk allows any RV approved bike rack designed for a 2″ receiver to fit. Your application will be determined by the turning radius and positioning of the rack. Supports up to 100 lbs.

Critical Dimensions:

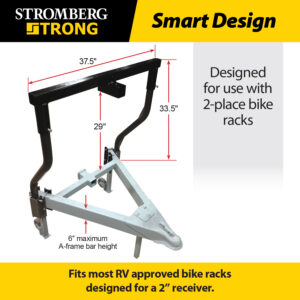

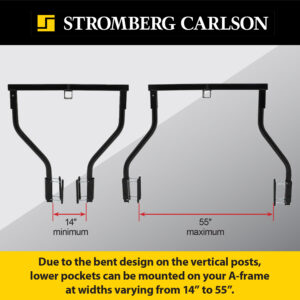

33.5″ from the top of your trailer A-frame to the top of the Bike Bunk cross tube, 29” from the top of your trailer A-frame to the bottom of the receiver tube on the cross tube.  Due to the bent design on the vertical bent posts, lower pockets can be mounted on your A-frame at widths varying from 14″ to 55″. Accommodates max A-frame bar height of 6″.

If you have propane tanks installed and the bike bunk cross bar is located above them, one of three things can be done to allow you to remove your tanks for refill or to access valves without removing the cross tube.

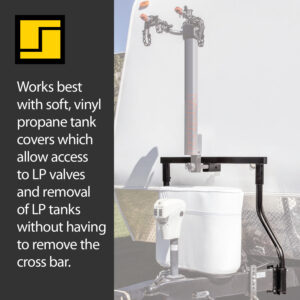

• Replace your existing tank cover with a soft vinyl cover, allowing access to your LP valves or to remove LP tanks without having to remove the cross bar.
• Replace your existing tank cover with a flip-top hard plastic cover to access your LP valves. You will need to remove the cross bar to remove cover and refill LP tanks.
• Leave the tank cover off for direct access to your LP tanks.

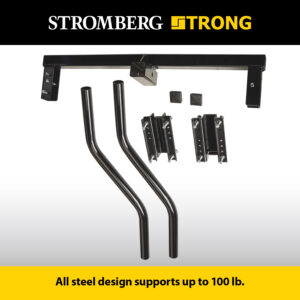

All steel design.  Bike rack not included.

See our Post Mount and Platform Mount Bike Racks HERE.

Model CC-275 – Complete Bike Bunk Assembly

The CC-275 ships complete with all components and hardware. However, if you need to replace any of these items you can do so by adding the below to your cart.

Model 2275 – Replacement Hardware
Model 7605-175 – Cross Tube
Model 7605-107P – Bent Posts (sold individually)
Model 7605-104P – Lower Pockets (sold individually)
Model 7605-117 – Backer Bars (sold individually)
